Best price per watt thin film flexible solar panel

FOB Reference Price:Get Latest Price
US $0.52-0.55 / Watt | 5 Piece/Pieces (Min. Order)
Supply Ability:
2000000 Watt/Watts per Week
Port:
Shanghai/Ningbo port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
YYOPTO
Model Number:
HLSP36-100M
Material:
Monocrystalline Silicon
Size:
1470x670x30mm
Number of Cells:
36
Max. Power:
100w
solar panel Weight:
8KG
Operating temperature:
-45/+80Deg
solar panel Front cover:
Tempered Glass, 3.5mm (material / thickness [mm])
Max. wind load / Max. snow load [Pa]:
2.4K/5.4 K
Power tolerance:
0 to +3%
solar panel Frame:
Anodised aluminium profile
Maximum voltage:
800V
Length of Cables/connector:
600mm
Packaging & Delivery
Packaging Details
pallet+carton+wooden or we can packing as your request
Delivery Time
7 days after order

Best price per watt thin film flexible solar panel

Product Description

1.Watt Rating:100w

2.Dimensions:1470x670x30mm

3.Quicker installation means quicker returns.

4.This 36-cells module was specially designed by YYOPTO for large rooftop and open space systems.

5.Through the use of efficient polycrystalline cells, this panel provides an achieved performance efficiency of up to 17%.

6.In a large project, this cellular module can help you save cost in labor and installation.







ELELTRICAL CHARACTERISTICS:
Model

HLSP36-100M

CellMono
Pmax(Power)*100
Vmp(nominal voltage). V18
Imp(nominal current). A5.55
Voc(voltage open circuit). V21.6
Isc(short-circuit current). A6.61
Maximum voltage. V800
Power tolerance0 to +3%
* 2.NOCT:45Deg
Operating temperature-45/+80Deg
*STC:Irradiation 1000 W/M2,AM 1.5,Temperature 25Deg
Temperature coefficients of Voc (%)   -(2.23+/-0.1)mv/ °C
Temperature coefficients of Isc (%) 0.065+/-0.015%/ °C
Temperature coefficients of Pm (%)   -(0.5+/-0.05)%/ °C
Temperature coefficients of Im (%)   +0.1/ °C
Temperature coefficients of Vm (%)   -0.38/ °C
Junction boxIP65/4 protection degree / number of diodes)
Front coverTempered Glass, 3.5mm (material / thickness [mm])
Cell Type (quantity / technology)36 Monocrystalline / 125*125mm
Rear cover (material / thickness [mm])Le – PET – PVDF / 0.287
FrameAnodised aluminium profile
Max. wind load / Max. snow load [Pa] 2.4K/5.4 K
Length of Cables/connector600mm
* 3.PHYSICAL CHARACTERISTICS:
Dimension(LxHxD) in mm1200x540x40
Weight(KG)8







Packaging & Shipping

packing: pallet+carton+wooden or we can packing as your request.

shipping:7 days after order.







Our Services
1.Modern Management with a professional and efficient team.
2.All workers pass the skills access before working.

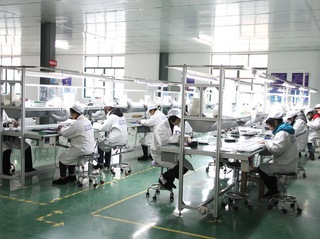

3.Using the newest technology and equipment, 90% of the production facilities are imported from Germany and Italy.
4.Products are approved by IEC61215, IEC61730,TUV,CE ,ROHS.
5.Powerful Research Ability, 15~20 new kinds of products are launched each year.
6.Annual 200MW solar panel and solar cell production capacity.
7.80% of our products are exported to more than 60 countries in the world.
8.Successful projects were installed in more than 60 countries in the world.





Company Information

1. YYOPTO is an international PV supplier manufacturer in China from 2004.

2. YYOPTO has the Modern Management Method.

3. YYOPTO has a professional and efficient team, and all workers pass the skills access before work.

4. YYOPTO uses the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.

5. All products are approved by ISO9001/14001, TUV, UL, CE& CSA.

6. YYOPTO has annual 200MW solar panel and solar cell production capacity.

7. 80% of our products are export to more than 60 countries in the world. Successful projects were installed in more than 60 countries in the world





FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jinhua , Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!

3. Q: How can I get some samples?

A: Please connect me for samples, and my phone number: +86 15907191067.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.
