Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP36-50P
  • Material: Polycrystalline Silicon
  • Size: 790mm*535mm*30mm
  • Number of Cells: 36
  • Max. Power: 50w
  • solar aerator Weight: 6.05KG
  • Optimum Power Voltage: 17.6v
  • solar aerator Frame: Anodised aluminium profile
  • Optimum Operatige Current: 2.84A
  • Open Circuit Voltage: 21.8V
  • Short Circuit Current: 3.41A

Packaging & Delivery

Packaging Details pallet+carton+wooden or we can packing as your request
Delivery Time 7 days after order

50W Customized size polycrystalline solar panel lowest price for Pasistan  solar aerator

Product Description

1.Watt Rating:50w

2.Dimensions: 790mm*535mm*30mm

3.Quicker installation means quicker returns.

4.This 36-cells module was specially designed by YYOPTO for large rooftop and open space systems.

5.Through the use of efficient polycrystalline cells, this panel provides an achieved performance efficiency of up to 17%.

6.In a large project, this cellular module can help you save cost in labor and installation.








ITEM NO.:Poly 156*156mm cell, 36pcs.
Maximum Power(W)50wp
Optimum Power Voltage(Vmp)17.6v
Optimum Operatige Current(Imp)2.84A
Open Circuit Voltage(Voc)21.8V
Short Circuit Current(Isc)3.41A
Solar Cell:156*156mm Poly
Number of Cell(pcs)4*9
Brand Name of Solar CellsJA Cell, Bluesun Cell
Size of Module(mm)790mm*535mm*30mm
Caple & Connector TypePass the TUV Certificate
Frame(Material Corners,etc.)Aluminium-alloy
Backing (Brand Type)TPT
Cell Efficiency(%)17.73
Weight Per Piece(KG)6.05KG
FF (%)70-76%
Junction Box TypePass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)0~+3%
Front Glass Thikness(mm)3.2
Temperature Coefficients of Isc(%)0.035%/K
Temperature Coefficients of Voc(%)0.351%/K
Temperature Coefficients of Pm(%)0.47%/K
Temperature Coefficients of Im(%)0.04
Temperature Coefficients of Vm(%)-0.38
Temperature Range-40°C to +85°C
Surface Maximum Load Capacity2400Pa
Allowable Hail Load23m/s ,7.53g
Bypass Diode Rating(A)10
Warranty100% of 10 years,80% of 25 years.
Standard Test ConditionsAM1.5   1000W/m² 25 +/-2°C
Packingcarton or pall

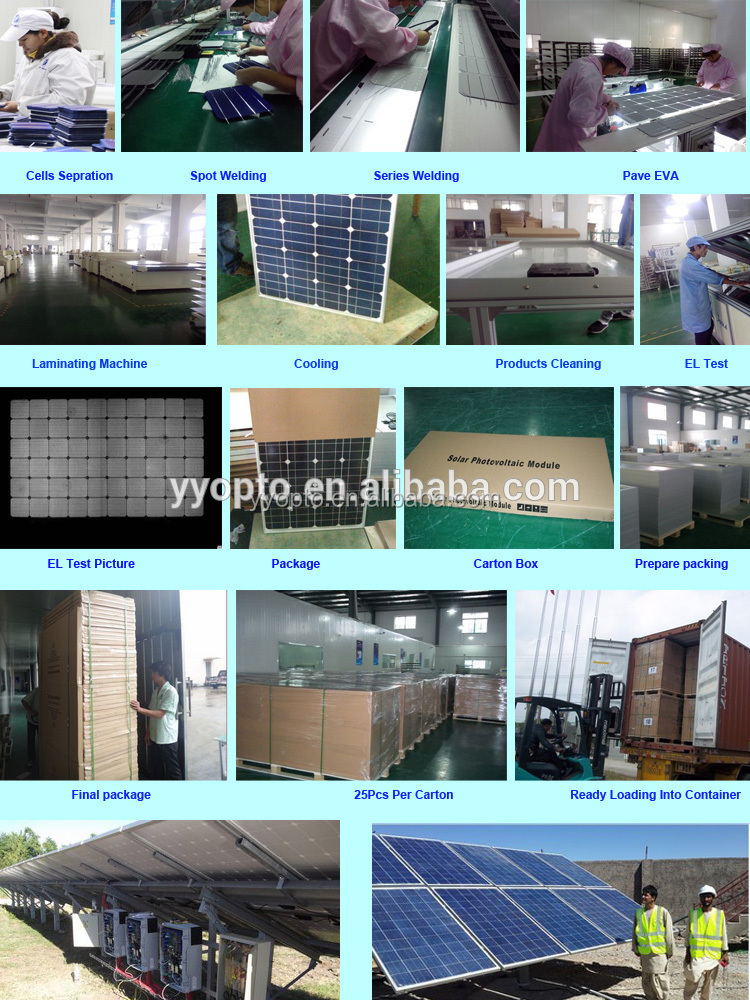

Packaging & Shipping

solar aerator  packing: pallet+carton+wooden or we can packing as your request.

solar aerator  shipping:7 days after order.











Our Services

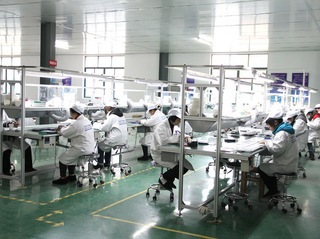

1.Modern Management with a professional and efficient team.
2.All workers pass the skills access before working.
3.Using the newest technology and equipment, 90% of the production facilities are imported from Germany and Italy.
4.Products are approved by IEC61215, IEC61730,TUV,CE ,ROHS.
5.Powerful Research Ability, 15~20 new kinds of products are launched each year.
6.Annual 200MW solar panel and solar cell production capacity.
7.80% of our products are exported to more than 60 countries in the world.
8.Successful projects were installed in more than 60 countries in the world.













Company Information

1. YYOPTO is an international PV supplier manufacturer in China from 2004.

2. YYOPTO has the Modern Management Method.

3. YYOPTO has a professional and efficient team, and all workers pass the skills access before work.

4. YYOPTO uses the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.

5. All products are approved by ISO9001/14001, TUV, UL, CE& CSA.

6. YYOPTO has annual 200MW solar panel and solar cell production capacity.

7. 80% of our products are export to more than 60 countries in the world. Successful projects were installed in more than 60 countries in the world





FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jinhua , Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!

3. Q: How can I get some samples?

A: Please connect me for samples, and my phone number: +86 15907191067.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.
