Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP36-100M
  • Material: Monocrystalline Silicon
  • Size: 125*125
  • Number of Cells: 36
  • Max. Power: 100W
  • Weight: 8KG
  • Dimension(lxhxd): 1200x540x30
  • Length of Cables/connector: 900mm
  • Certificate: TUV
  • Junction Box: IP65 Rated
  • Application: Commercial
  • Warranty: 25 Years 80%
  • Frame: Anodized Aluminium Alloy
  • Color: Blue Ad Black
  • Connector: MC4 Compatible Connector

Packaging & Delivery

Packaging Details 2 pieces in one carton
Delivery Time 7 days after deposit received.





36 mono PRODUCT

PRODUCT DESCRIPTION

1.SOLAR PANEL ELELTRICAL CHARACTERISTICS:
Model                                                                    HLSP36-80MHLSP36-85MHLSP36-90MHLSP36-95MHLSP36-100M
CellMonoMonoMonoMonoMono
Pmax(Power)*80859095100
Vmpp(nominal voltage). V17.6417.821818.2917
Impp(nominal current). A4.544.7655.195.88
Voc(voltage open circuit). V21.9621.9621.9621.9621
Isc(short-circuit current). A4.95.235.555.76.61
Cell Efficiency15.40%15.60%16.82%17.86%18.60%
Module Efficiency11.86%12.60%13.82%14.59%15.40%
Maximum voltage. V1000
Power tolerance0 to +3%
* 2.NOCT:45Deg
Operating temperature -45/+80Deg
*STC:Irradiation 1000 W/M2,AM 1.5,Temoerature 25Deg
Temperature coefficients of Voc (%)   -(2.23+/-0.1)mv/ °C
Temperature coefficients of Isc (%) 0.065+/-0.015%/ °C
Temperature coefficients of Pm (%)   -(0.5+/-0.05)%/ °C
Temperature coefficients of Im (%)   +0.1/ °C
Temperature coefficients of Vm (%)   -0.42/ °C
Junction boxCIXI/IP65/4(manufacturer / protection degree / number of diodes)
Front coverTempered Glass, 3.5mm (material / thickness [mm])
Cell Type (quantity / technology)36/ monocrystalline / 125x125mm
Encapsulation materials Ethylene Vinyl AcetateEVA
Rear cover (material / thickness [mm])TPT / 0.287
FramAnodised aluminium profile
Max. wind load / Max. snow load [Pa]2.4K/5.4 K
Length of Cables/connector900mm
* 3.PHYSICAL CHARACTERISTICS:
Dimension(LxHxD) in mm1200x540x30/Thickness with junction box [mm] 35
Weight(KG)8
* 3.One 40'HQ could load:1288pcs Modules . 2pcs in one carton



ALL FOR

Packaging & Shipping

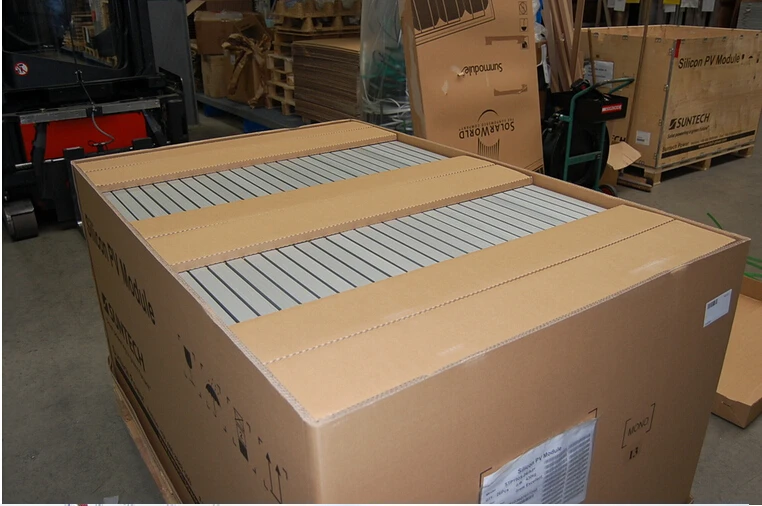

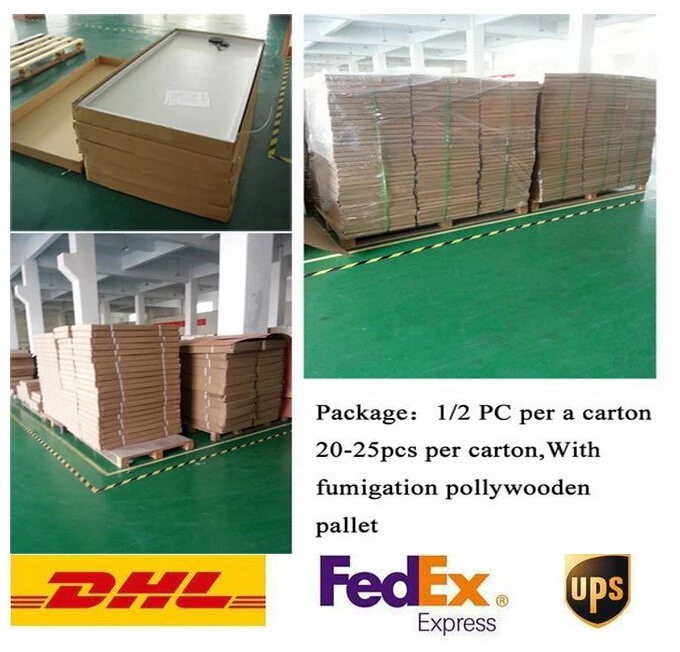

Packaging Detail:pallet+carton+wooden or we can packing as your request.
Delivery Detail:7 days after order
