Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP36-50P
  • Material: Polycrystalline Silicon
  • Size: 570x670x30mm
  • Number of Cells: 36
  • Max. Power: 50w
  • Weight: 6.05KG
  • Frame: Anodised aluminium profile

Packaging & Delivery

Packaging Details pallet+carton+wooden or we can packing as your request
Delivery Time 7 days after order

Specifications

50 watt small solar panel/ import solar panels /low price mini solar panel
1.high conversion efficiency.
2.25 years warranty

 Product description

50 watt small solar panel/ import solar panels /low price mini solar panel

1.Watt Rating: 50w

2.Dimensions:  570x670x30mm






ITEM NO.:Poly 156*156mm cell, 36pcs.
Maximum Power(W)50wp
Optimum Power Voltage(Vmp)17.6v
Optimum Operatige Current(Imp)2.84A
Open Circuit Voltage(Voc)21.8V
Short Circuit Current(Isc)3.41A
Solar Cell:156*156mm Poly
Number of Cell(pcs)4*9
Brand Name of Solar CellsJA Cell, Bluesun Cell
Size of Module(mm)790mm*535mm*30mm
Caple & Connector TypePass the TUV Certificate
Frame(Material Corners,etc.)Aluminium-alloy
Backing (Brand Type)TPT
Cell Efficiency(%)17.73
Weight Per Piece(KG)6.05KG
FF (%)70-76%
Junction Box TypePass the TUV Certificate
Tolerance Wattage(e.g.+/-5%)0~+3%
Front Glass Thikness(mm)3.2
Temperature Coefficients of Isc(%)0.035%/K
Temperature Coefficients of Voc(%)0.351%/K
Temperature Coefficients of Pm(%)0.47%/K
Temperature Coefficients of Im(%)0.04
Temperature Coefficients of Vm(%)-0.38
Temperature Range-40°C to +85°C
Surface Maximum Load Capacity2400Pa
Allowable Hail Load23m/s ,7.53g
Bypass Diode Rating(A)10
Warranty100% of 10 years,80% of 25 years.
Standard Test ConditionsAM1.5   1000W/m² 25 +/-2°C

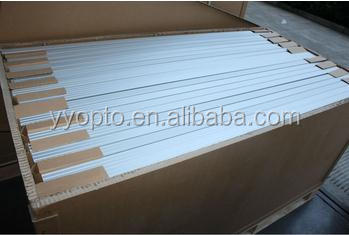

Packingcarton or pallet










Packaging & Shipping

packing: pallet+carton+wooden or we can packing as your request.



shipping:7 days after order.







           Our Services

  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Paypal, Western Union, Escrow  to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Accept pre-shipment inspection by customers or third-party inspection companies to ensure that the products are qualified, in sound condition and in right quantity.
