Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP-C100P
  • Material: color poly cells
  • Size: 1200*540*30MM
  • Number of Cells: 36
  • Max. Power: 100W
  • For home lighting use voltage: 12-18V
  • Battery: 250AH
  • SOLAR CELLS: POLY 125 *125 COLOR CELLS
  • Frame thickness: 30mm
  • Frame color: Silvery
  • Front cover: 3.2mm High Transimissiion
  • Encapsulation Material: EVA 0.35mm
  • Junction Box: IP65 Rated
  • Output Cables: 2.5mm2 Length 900mm
  • Warranty: 25 Years Output Power Guarantee

Packaging & Delivery

Packaging Details 1/2Pcs per box,20-25pcs per carton,With fumigation pollywooden pallet
Delivery Time 7day after deposit received.

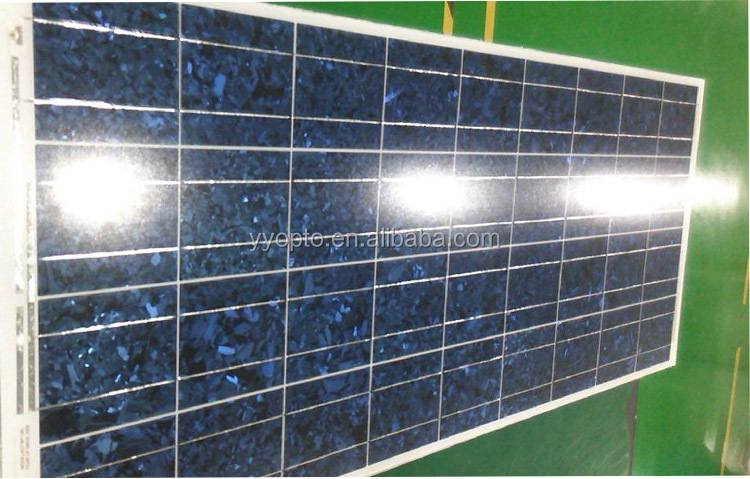

Quality Assurance Testing for 100W color cells poly solar panel.Home lighting use

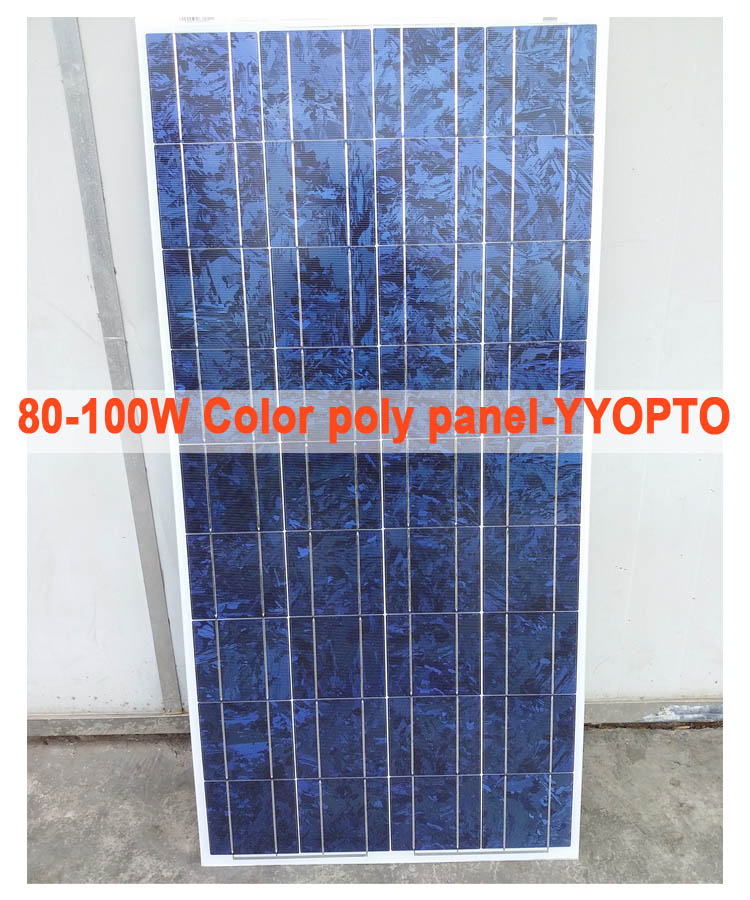

Product Description

 Professional And Reliable Solar Panel Manufacturer

 Standard Test Condition:  Irradiance 1000W/m2,Module temperature 25°C,AM=1.5



1.ELELTRICAL CHARACTERISTICS:
Model

HLSP-C100P

CellPoly
Pmax(Power)*100
Vmpp(nominal voltage). V18
Impp(nominal current). A5.55
Voc(voltage open circuit). V21.6
Isc(short-circuit current). A6.61

Maximum voltage. V800
Power tolerance0 to +3%
* 2.NOCT:45Deg
Operating temperature-45/+80Deg
*STC:Irradiation 1000 W/M2,AM 1.5,Temperature 25Deg
Temperature coefficients of Voc (%)   -(2.23+/-0.1)mv/ °C
Temperature coefficients of Isc (%) 0.065+/-0.015%/ °C
Temperature coefficients of Pm (%)   -(0.5+/-0.05)%/ °C
Temperature coefficients of Im (%)   +0.1/ °C
Temperature coefficients of Vm (%)   -0.38/ °C
Junction box IP65/4 protection degree / number of diodes)
Front coverTempered Glass, 3.5mm (material / thickness [mm])
Cell Type (quantity / technology)36 Colorful solar cells/ 125*125mm
Rear cover (material / thickness [mm]) TPT
Fram Anodised aluminium profile
Max. wind load / Max. snow load [Pa]
2.4K/5.4 K
Length of Cables/connector600mm
* 3.PHYSICAL CHARACTERISTICS:
Dimension(LxHxD) in mm1200x540x40
Weight(KG)8





Mechanical Characteristics













Quality and Safety

1. Rigorous quality control meets the highest international standards.

2. High-transmissivity low-iron tempered glass, strong aluminium frame.

3. Using UV-resistant silicon.

4. IS09001/14001/CE/TUV/UL

Warranties

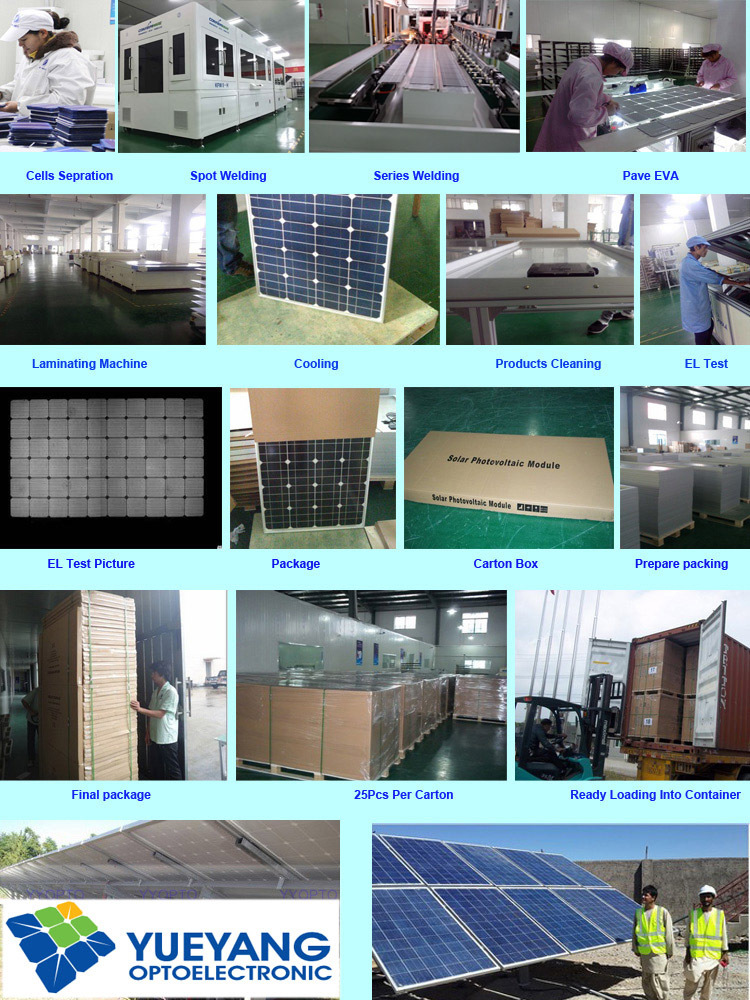

Packaging & Shipping



Company Information

1. YYOPTO is an international PV supplier manufacturer in China from 2001.

2. YYOPTO has the Modern Management Method.

3. YYOPTO has a professional and efficient team, and all workers pass the skills access before work.

4. YYOPTO uses the newest technology and equipment, 90% of the production facilities are imported from Germany, Italy and US.

5. All products are approved by ISO9001/14001, TUV,  CE

6. YYOPTO has annual 200MW solar panel and solar cell production capacity.

7. 80% of our products are export to more than 60 countries in the world. Successful projects were installed in more than 60 countries in the world



Our Services



  • Customized Samples are acceptable
  • Accept different payment methods, such as T/T, L/C, Paypal, Western Union, Escrow  to meet your different financial requirements
  • Welcome and accept 100% customers factory inspection before the production
  • Accept pre-shipment inspection by customers or third-party inspection companies to ensure that the products are qualified, in sound condition and in right quantity.
  • 10 years 100% warranty, 25 years warranty for 80%, replacement of any defective products in the warranty without any charge
  • Supply skills training including product basic knowledge, installation, operation, maintenance skills training for the local people
  • We provide 7 days 24 hours service!
FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q: Where is your factory located? How can I visit there?

A: Our factory is located in Jinhua , Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!

3. Q: How can I get some samples?

A: Please connect me for samples, and my phone number: +86 13065913221.

4. Q: Can the price be cheaper?

A: Of course, you will be offered a good discount for big amount.



More info about our company, please check



http://yyopto.en.alibaba.com



Find me here:











Whatsapp/Mobile: +86-013065913221



E-mail:sales(AT)yyopto.com

Skype: rdm-solar

Penny Xu
