Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP48-195P
  • Material: Polycrystalline Silicon
  • Size: 1324x992x45MM
  • Number of Cells: 48
  • Max. Power: 195W
  • Voltage for solar lighting system: 18V

Packaging & Delivery

Packaging Details 1/2Pcs per box,20-25pcs per carton,With fumigation pollywooden pallet
Delivery Time Within 7days after deposit received.

 Our BEST PRICE Photovoltaic PV Solar Panel  156 solar cells 48pcs .

Power range 170-200Wp for Large space use



Product Highlights:

  • Auxiliary power for RV's. Popular with commercial RV retrofitters
  • Great for camping or remote cabins. Power devices in remote back country locations
  • Easy way to provide power for sheds, light poles and gates without the need for trenching and  laying cables
  • Two or more panels can provide back-up power for critical appliances like a refrigerator during a power outage
  • Kit will produce an average of 800 Watt Hours (Wh) or 67 Amp Hours (Ah) of charge per day
  • The two solar panels can be wired in parallel for 12V charging or in series for 24V battery charging

Quality and Safety



        Rigorous quality control meeting the highest international standards

        High-transmissivity low-iron tempered glass, strong aluminium frame

        Using UV-resistant silicon

        ISO 9001:2008 and ISO 14001:2004

        IEC61215, IEC61730, Safety Class Inconformity to CE



Features

      Aesthetic appearance with excellent efficiency based on innovative

      photovoltaic technologies

     Strong frame, passing mechanical load test of 5400Pa, instead of the normal

     2400Pa,to withstand heavier snow load and higher wind-pressure



Warranties

    10 years limited product warranty

    15 years at 90% of the minimal rated power output

    25 years at 80% of the minimal rated power output

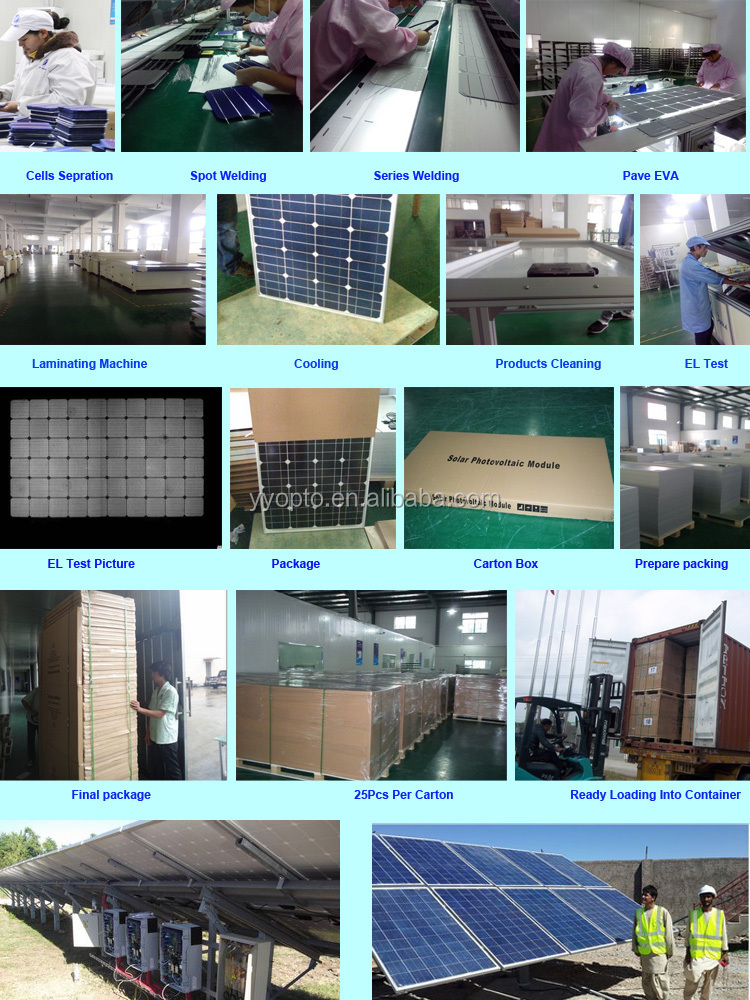

Quality Assurance Testing for the photovoltaic panels



Professional And Reliable Solar Panel Manufacturer



 Standard Test Condition:  Irradiance 1000W/m2,Module temperature 25°C,AM=1.5





 1.ELELTRICAL CHARACTERISTICS:
Model                                                                     HLSP-170PHLSP-175PHLSP-180PHLSP-190PHLSP-200P
Cellpolypolypolypolypoly
Pmax(Power)*170175180190200
Vmpp(nominal voltage). V232323.52424.5
Impp(nominal current). A7.397.617.667.928.16
Voc(voltage open circuit). V29.229.229.930.531.1
Isc(short-circuit current). A7.958.148.238.528.76
Cell Efficiency14.60%15.00%15.40%15.40%17.12%
Module Efficiency12.90%13.30%13.70%13.70%15.30%
Maximum voltage. V10001000100010001000
Power tolerance0 to +3%0 to +3%0 to +3%0 to +3%0 to +3%
* 2.NOCT:45Deg45Deg45Deg45Deg45Deg
Operating temperature -45/+80Degree -45/+80Deg -45/+80Deg -45/+80Deg -45/+80Deg
*STC:Irradiation 1000 W/M2,AM 1.5,Temperature 25Deg
Temperature coefficients of Voc (%)   -(2.23+/-0.1)mv/ °C
Temperature coefficients of Isc (%) 0.065+/-0.015%/ °C

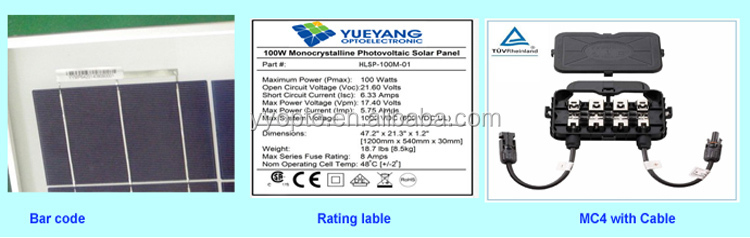

Junction box CIXI/IP65/4(manufacturer / protection degree / number of diodes)
Front coverTempered Glass, 4.0mm (material / thickness [mm])
Cell Type (quantity / technology)48/POLY CELL 156X156/6x8 Arry
Encapsulation materialsEVA (Ethylene Vinyl Acetate)
Rear cover Le – PET – PVDF / 0.287
Fram Anodised aluminium profile(material / thickness [mm])
Max. wind load / Max. snow load [Pa]2.4K/5.4 K
Length of Cables/connector900mm
Dimension(LxHxD) in mm1324x992x45
Weight17.5KG







Quality and Safety



1. Rigorous quality control meets the highest international standards.

2. High-transmissivity low-iron tempered glass, strong aluminium frame.

3. Using UV-resistant silicon.

4. IS09001/14001/CE/TUV/UL



Warranties



1. 10 years limited product warranty

2. 15 years at 90% of the minimal rated power output

3. 25 years at 80% of the minimal rated power output



FAQ



 1. Q:  Are you a factory or trading company?

    A: We are a factory.



2. Q:  Where is your factory located? How can I visit there?

    A: Our factory is located in Jinhua , Zhejiang, China, near Shanghai. You are warmly welcomed to visit us!



3. Q:  How can I get some samples?

    A:  Please connect me for samples, and my phone number: +86 13065913221.



4. Q:  Can the price be cheaper?

    A: Of course, you will be offered a good discount for big amount.







Our Services



 Customized Sample are acceptable



 Accept 100% customers factory or third party inspection before shipping



10 years 100% warranty, 25years warranty for 80%, we will replace any defective products withoutany charge during the warranty period.



Supplying skills training, including basic knowledge of products, installation, operation andmaintenance for the local people.



We are 7 days, 24 hours service, plz contact me without any hesitate, if any!







More info about our company, please check



http://yyopto.en.alibaba.com



Find me here:











Mobile: +86-013065913221



E-mail:sales(AT)yyopto.com



Skype: rdm-solar
