Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP-9P
  • Material: Monocrystalline Silicon
  • Size: 340X285X25mm
  • Number of Cells: 36
  • Max. Power: 9W
  • For solar LED Lighting system: 18V
  • Solar cells brand: From Taiwan
  • Frame: Aliuminum
  • Modes of Supply: Factory Directly Supply

Packaging & Delivery

Packaging Details 1Pc per box,5pcs per carton,With fumigation pollywooden pallet.for safe transportation.
Delivery Time Within 7days after deposit received.

Specifications

(1) PV Mini solar panel
(2)easy to install
(3)TUV/IEC/CE/CEC (4) OEM service
(5) A grade cell efficiency

 Quality Assurance Testing for the PV mini solar panel

 Industry-leading Testing Approved (Under UL1730, IEC 61215, IEC 61730 Standards

Thermal Cycling Test

Thermal/Freezing and High Humidity Cycling Test

Electrical isolation Test

Hail Impact Test

Mechanical, Wind and Twist Loading Test

Salt Mist Test

Light and Water-exposure Test

Moist Carbon Dioxide/Sculpture Dioxide





   OEM services


   We supply OEM services, you can put your logo and picture on the solar panel if you have any other requirement, please feel free to contact me at anytime.

Any suggestion will be appreciated.


  Note: we can design different watts panel according to customer's requirement.

WHY US?

1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of solar modules ranging from 3w to 300w with CEC, TUV, and CE approval, offering the full spectrum sizes,solar panels are as efficient as other competitors, but far cheaper-without skimping on quality.







Professional And Reliable mini solar panel Manufacturer



Characteristics

HLSP-9P

HLSP-9.5P

HLSP-10P

HLSP-11P

HLSP-11.5P

Maximum power(Pm)

9.0W

9.5W

10W

11W

11.5W

Power Tolerance

±5%

±5%

±5%

±5%

±5%

Voltage at max power(Vmp)

17.4V

17.4V

17.4V

17.4V

17.4V

Current at max power(lmp)

0.52A

0.55A

0.57A

0.63A

0.66A

Open circuit voltage(Voc)

21.6V

21.6V

21.6V

21.6V

21.6V

Short circuit current(lsc)

0.57A

0.61A

0.63A

0.69A

0.73A

Operating Temperature

-40°Cto+85°C

-40°Cto+85°C

-40°Cto+85°C

-40°Cto+85°C

-40°Cto+85°C

Maximum System Voltage

700V

700V

700V

700V

700V

Maximum Series Fuse Rating

1A

1A

1A

1A

1A



Standard Test Condition



Irradiance 1000W/m2,Module temperature 25°C,AM=1.5



Mechanical Characteristics



Solar cell :Polycrystalline silicon solar cell 156X156mm(6inch)



No.of cells and connections :36 = 2 X 18 pcs



Dimension of module :340X285X25mm(13.4X11.2X1 .Oinch)



Weight :1.4kg





Warranty :Pm is not less than 90% in 10 years and 80% in 20 years Resistances :227g steel ball fall down from 1 m height and 60m/s wind
Temperature Coefficients
Noct :48°C +/- 2°C
Current temperature coefficient :0.06 +/- 0.01 %/K

Voltage temperature coefficient :-(78 +/- 10) MV/K

Power temperature coefficient :-(0.5 +/- 0.05) %/K







Product Description








Packaging & Shipping





Company Information

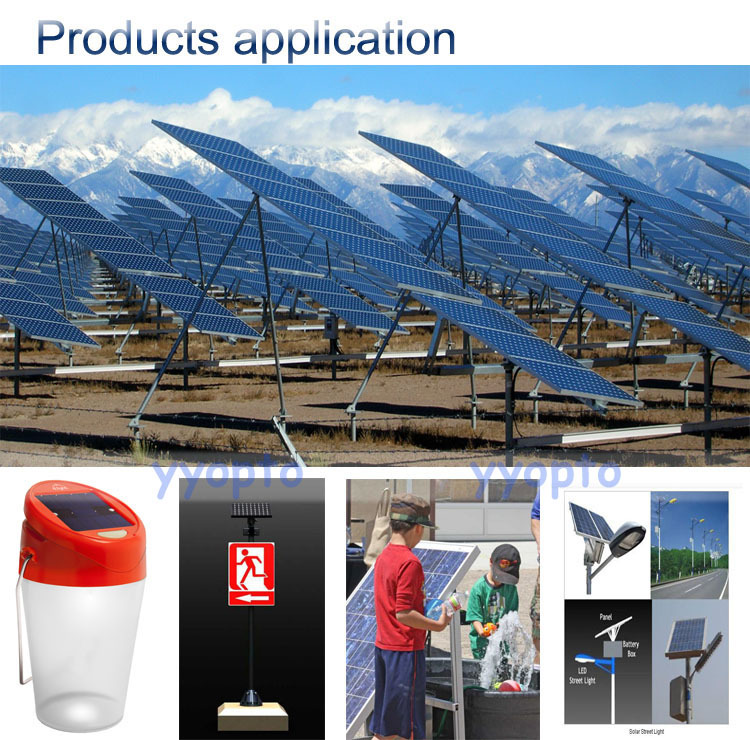

Products application
