Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: YYOPTO
  • Model Number: HLSP-70P
  • Material: Monocrystalline Silicon
  • Size: 760X670X25mm
  • Number of Cells: 36
  • Max. Power: 70W
  • For solar LED Lighting system: 18V
  • Solar cells brand: From Taiwan
  • Frame: Aliuminum
  • Modes of Supply: Factory Directly Supply
  • Cell efficiency: 15.94%-18.10%

Packaging & Delivery

Packaging Details 1/2Pcs per box,20-25pcs per carton,With fumigation pollywooden pallet
Delivery Time Within 7days after deposit received.

Specifications

(1) solar panels wholesale
(2)easy to install
(3)TUV/IEC/CE/CEC (4) OEM service
(5) A grade cell efficiency

 Quality Assurance Testing for the mini solar panel



Industry-leading Testing Approved (Under UL1730, IEC 61215, IEC 61730 Standards

Thermal Cycling Test

Thermal/Freezing and High Humidity Cycling Test

Electrical isolation Test

Hail Impact Test

Mechanical, Wind and Twist Loading Test

Salt Mist Test

Light and Water-exposure Test

Moist Carbon Dioxide/Sculpture Dioxide





OEM 10w Poly solar panels --- Factory direct sale



Features
High reliability with guaranteed -3% to +5% power output tolerance, ensuring return on investment
High conversion efficiency based on leading innovative photovoltaic technologies
Withstands high wind-pressure and snow load, and extreme temperature variations
Attractive appearance
Unique frame design, high mechanical strength, and easy Installation

Efficiency
Low voltage-temperature coefficient allows higher power output at high-temperature condition
High efficient, high reliable solar cells ensure our product output stability





Professional And Reliable Solar Panel Manufacturer



Characteristics

HLSP-60P

HLSP-65P

HLSP-70P

HLSP-75P

Maximum power(Pm)

60.0W

65.0W

70.0W

75.0W

Power Tolerance

3%

3%

3%

3%

Voltage at max power(Vmp)

17.4V

17.4V

17.4V

17.4V

Current at max power(lmp)

3.45A

3.74A

4.02A

4.31A

Open circuit voltage(Voc)

21.6V

21.6V

21.6V

21.6V

Short circuit current(lsc)

3.79A

4.11A

4.42A

4.74A

Operating Temperature

-40°Cto+85°C

^0°Cto+85°C

-40°Cto+85°C

-40°Cto+85°C

Maximum System Voltage

700V

700V

700V

700V

Maximum Series Fuse Rating

5A

5A

5A

5A

Standard Test Condition

Irradiance 1000W/m2,Module temperature 25°C,AM=1.5

 Standard Test Condition



Standard Test Condition Irradiance 1000W/m2,Module temperature 25°C,AM=1.5
Mechanical Characteristics
Solar cell :Polycrystalline silicon solar cell 156X156mm(6inch)
No.of cells and connections :36 = 4 X 9 pcs
Dimension of module :760X670X25mm(30X26.4X1.0inch)
Weight :6.3kg
Junction Box :lp65 rated
Packing Configuration :4PCS/CTN,790X700X125mm(31.1X27.5X4.9inch) Warranty :Pm is not less than 90% in 10 years and 80% in 20 years Resistances :227g steel ball fall down from 1 m height and 60m/s wind





Temperature Coefficients
Noct :48°C +/- 2°C
Current temperature coefficient :0.06 +/- 0.01 %/K

Voltage temperature coefficient :-(78 +/- 10) MV/K

Power temperature coefficient :-(0.5 +/- 0.05) %/K







Product Description








Packaging & Shipping





Company Information

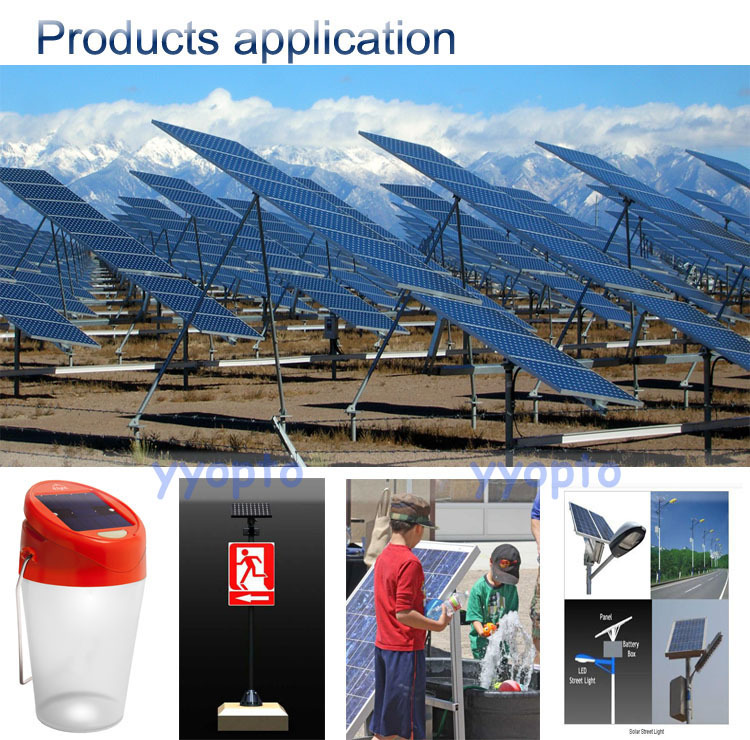

Products application
